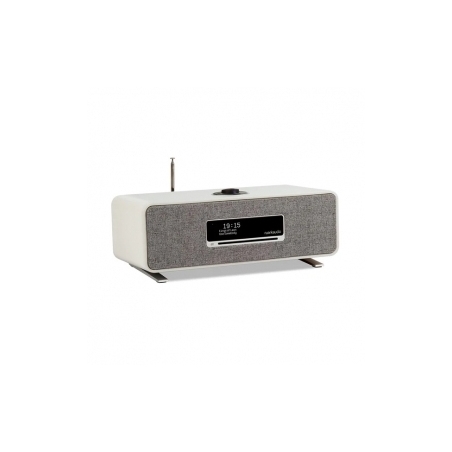

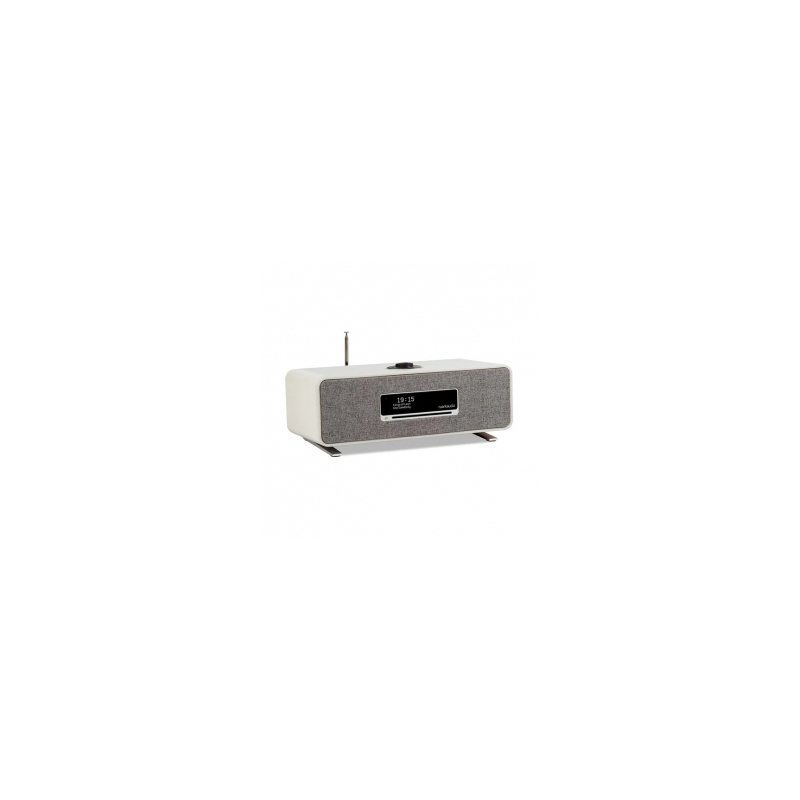

RUARK R3S

Audio

• Frequency response: 40Hz – 20kHz
• Drivers: 2 x 75mm Ruark NS+
• Amplifier: 30W Analogue class AB
• Enhancements: Bass, treble, loudness, 3D audio
• DAC/ADC: up to 24-bit 192kHz

Features

• Remote control: Infrared
• App control: UNDOK (iOS & Android)
• Display: High-contrast OLED
• Alarms: 2 (daily, once, weekends, weekdays)
• Auto standby: Automatic low power mode
• Adjustable input levels: Line in, optical
• User interface languages: EN, DE, FR, ES

Connectivity

• Radio: DAB/DAB+, FM with RDS (87.5-108MHz) and Internet Radio
• Radio presets: 10 presets in each mode
• Bluetooth: V4.0, SBC, AAC, A2DP
• Wi-Fi: 802.11b/g/n; WPS2 setup, WEP, WPA & WPA2
• Ethernet: RJ45
• Music services: Spotify Connect, Amazon Music, Deezer
• Media: Compatible with UPnP™ DLNA media servers; MP3 up to 48kHz 320kbps, AAC up to 96kHz 320kbps, FLAC* up to 24-bit 48kHz, WAV up to 16-bit 48kHz and 24 bit 44.1kHz, WMA up to 44.1kHz 320kbps CD support CD, CD-ROM, CD-R/RW discs; MP3, WMA & AAC up to 320 Kbps
• Line-in: Stereo RCA input (max 2.3Vrms)
• Optical input: TOSLINK digital input (24-bit 192kHz) Line-out Line-level stereo RCA (2.0Vrms)
• Headphone: 3.5mm output jack, 6Ω
• USB 2.0: Fat32 memory stick playback, 5V 1A (5W)
• Aerial: Removable telescopic
• Aerial connector: 75Ω F-type connector

General Specifications

• Finishes: Rich walnut veneer or soft grey with grey woven grille fabric
• Remote batteries: 2 x 1.5V AAA
• Box contains: R3 Wireless music system, universal power adapter with regional plugs, remote control, remote control batteries, telescopic aerial, aerial spanner, quick start guide
• Power adapter: 100-240VAC 50-60Hz input 14VDC 2.85A 40W output, 1.8m cable, 2.1 x 5.5mm DC plug
• Power consumption: 2.0W standby, 5.0W idle
• Product dimensions: H167 x W420 x D220mm (H6.6 x W16.5 x D8.7in)
• Product weight: 5.3kg
